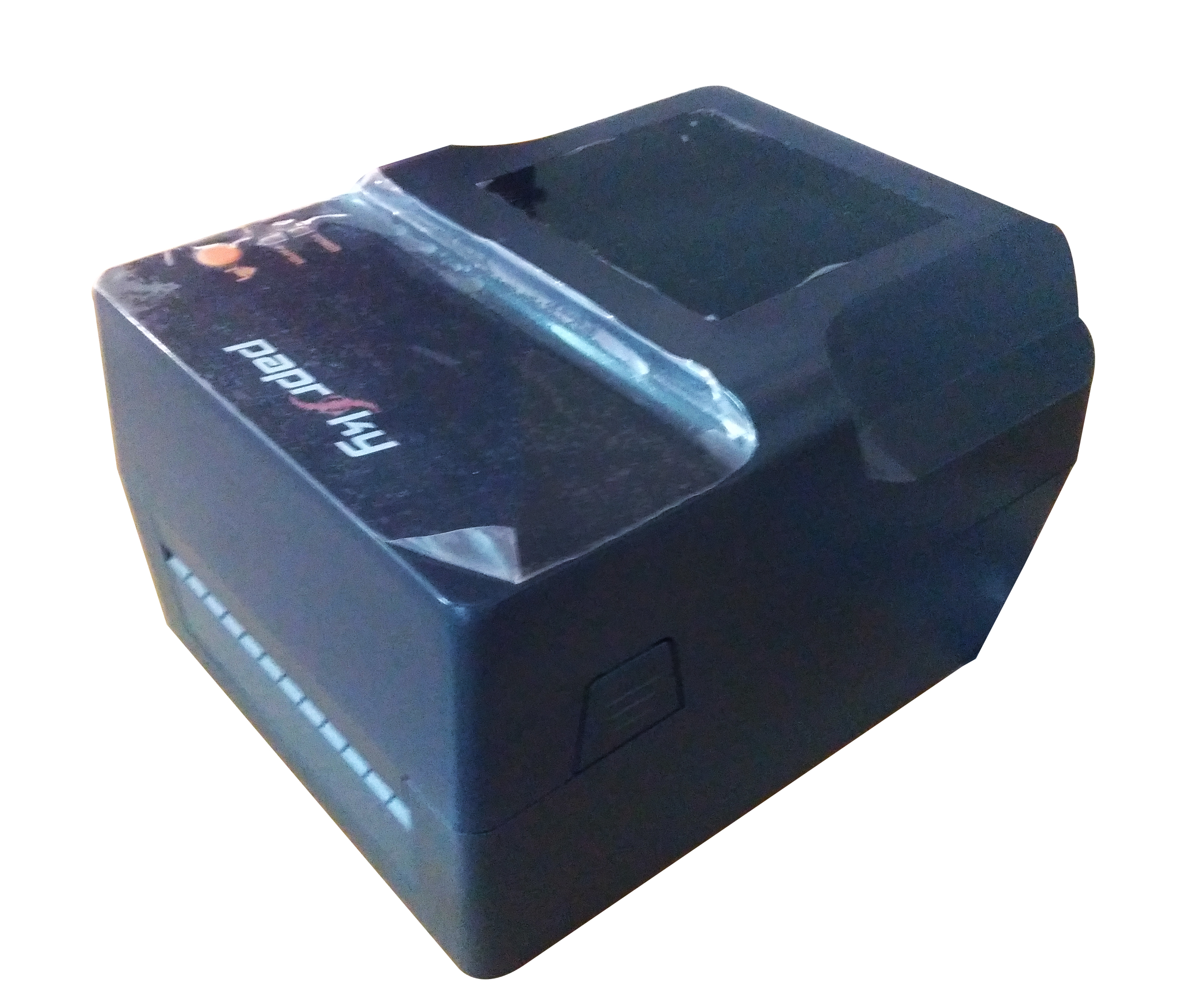

Safety Label Printer







Printing

Resolution

203dpi

Printing method

Thermal Transfer/Direct Thermal

Printing speed

4-5 Inch/s

Max printing width

104mm (4.09' )

Max printing Length

2286mm (90' )

Interface

USB/  (USB+ Serial+Parallel+Ethernet)

Print head (abrasive

150km

Commands

TSC







Ribbon

Ribbon OD

Max 60mm

Ribbon  Length

Max 300M

Ribbon width

Min. 30mm;  Max. 110mm

Ribbon Core Size

25.4mm

Ribbon Rolling Up Method

Outward Rolling











Media

Max Media Roll OD

127mm (5" )

Min Media Roll ID

25mm

Media Paper Type

Continuous, gap, fan hold, black mark,

Media Rolling Up Method

Printing  side outward Rolling

Media width

Max 120mm (4.72"), Min: 20mm (0.78")

Media Roll Core Size

25.4mm~38mm

Media Gap

Min.2mm

Media Thickness

0.058mm~0.305mm

Label Length

10mm~2286mm

Accessories

External Media Holder (Optional)



Software

Editing Software

Nicelabel SE



Picture format

Graphics processing

Support BMP/PCX/BAS

Environment

Specification

Temperature

Working: 5-45°C, Storage: -10~50°C

Humidity

Working : 25%~85% ; Storage: 10%~90%

Power supply

Input: AC 110V/240V, Output: DC24V/2.5A,60W

Storage

RAM:8MB FLASH: 4MB

Dimension

223*286*169mm

Printer weight

2.35kg
